EIFS Stucco System

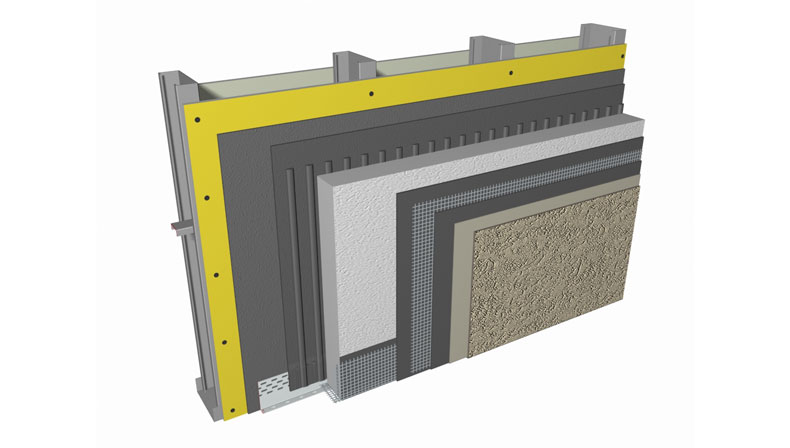

1. EIFS FOR COMMERCIAL AND HIGH RISE
PUCCS is continuous insulation cladding that includes a Geometrically Defined Drainage Cavity (GDDC) that is 10 mm deep and 37% open. PUCCS complies with National Building Code of Canada Subsection 5.9.4 (OBC 5.10.3) and Subsection 9.27.13, PUCCS complies with the CAN/ULC-S716.1 EIFS Materials and Systems test standard, PUCCS satisfies the test criteria in National Building Code of Canada Article 3.1.5.5 when tested in accordance with CAN/ULC-S134, and PUCCS satisfies the test criteria in National Building Code of Canada Article 3.2.3.8 when tested in accordance with CAN/ULC-S101.

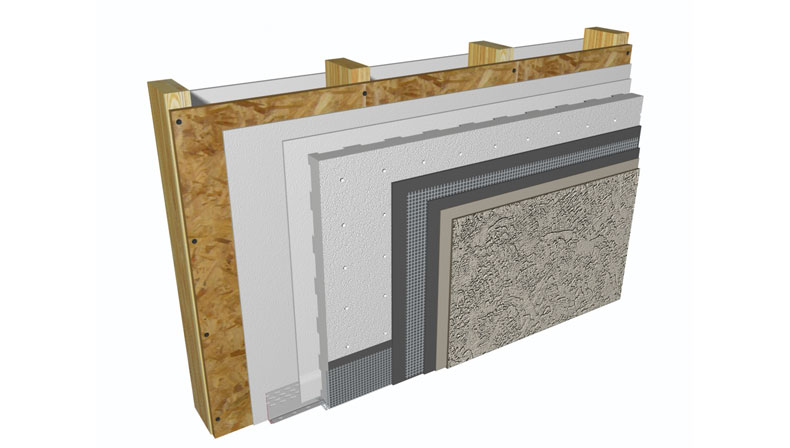

2. EIFS FOR RESIDENTIAL AND LOW RISE
PUCCS is continuous insulation cladding that includes a Geometrically Defined Drainage Cavity (GDDC) that is 10 mm deep and 37% open. PUCCS complies with National Building Code of Canada Subsection 5.9.4 (OBC 5.10.3) and Subsection 9.27.13, PUCCS complies with the CAN/ULC-S716.1 EIFS Materials and Systems test standard, PUCCS satisfies the test criteria in National Building Code of Canada Article 3.1.5.5 when tested in accordance with CAN/ULC-S134, and PUCCS satisfies the test criteria in National Building Code of Canada Article 3.2.3.8 when tested in accordance with CAN/ULC-S101.

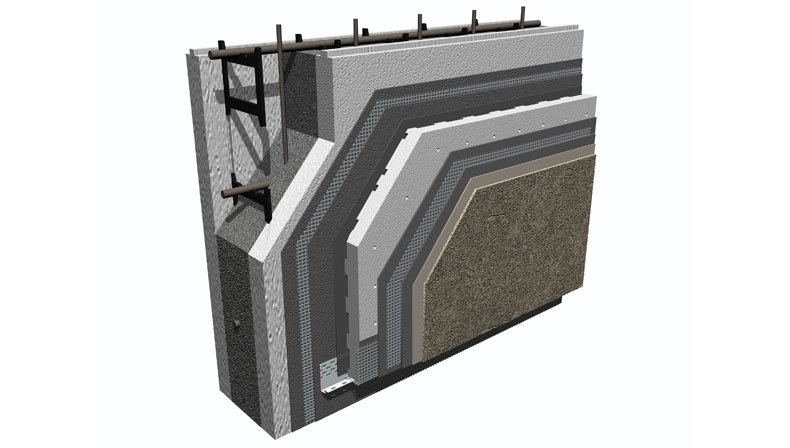

3. EIFS FOR INSULATED CONCRETE FORM
PUCCS is continuous insulation cladding that includes a Geometrically Defined Drainage Cavity (GDDC) that is 10 mm deep and 37% open. PUCCS complies with the CAN/ULC-S716.1 EIFS Materials and Systems test standard, PUCCS satisfies the test criteria in National Building Code of Canada Article 3.1.5.5 when tested in accordance with CAN/ULC-S134, and PUCCS satisfies the test criteria in National Building Code of Canada Article 3.2.3.8 when tested in accordance with CAN/ULC-S101. As PUCCS has not been specifically evaluated for use over ICF, such use is subject to approval from the authority having jurisdiction.

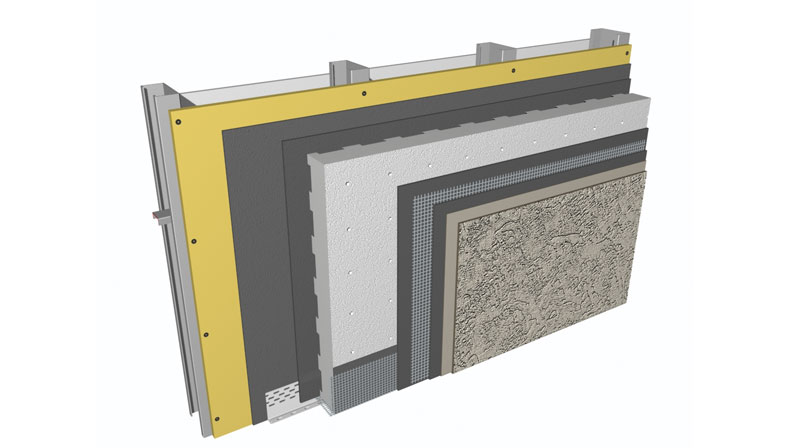

4. Exterior Insulation Finish System for Commercial & High Rise Construction
This series of Insulation EIFS provides moisture control through the use of a secondary barrier to moisture intrusion, which may also be used to control air leakage. This barrier, combined with the system's ability to drain incidental moisture, makes InsulROCK EIFS well suited for cladding buildings of any size.This InsulROCK System is intended for use on non-wood substrates. This system may incorporate either Cement (air/moisture barrier) or, where the design permits,Vapour Block.

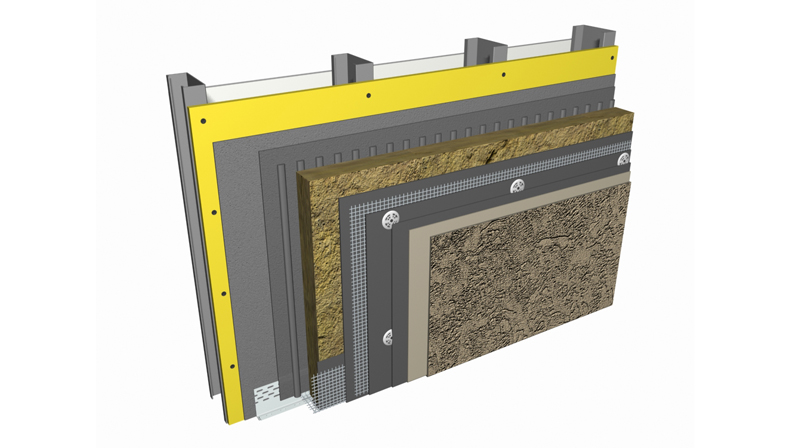

5. Exterior Insulation Finish System NC/Walls Requiring Non-Combustible Cladding
This Insulation Non-Combustible System is intended for use on walls where the building code does not permit the use of foamed plastic (ie. polystyrene) insulation. This typically applies to walls in close proximity to a property line or another building.

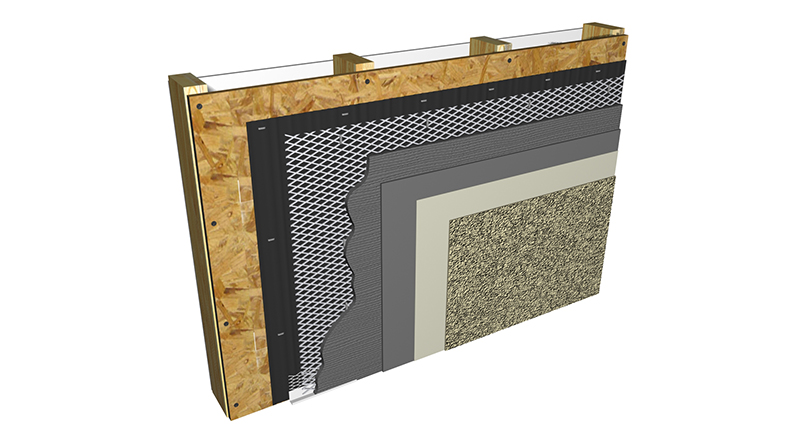

6. Stucco Plus for Sheathing Substrates
Stucco Plus incorporates a polymer-enhanced, fibre-reinforced base coat for superior adhesive and cohesive strength, as well as a polymer-based finish which is available in a variety of textures and infinite colours. The stucco base coat is supported by and reinforced with mechanically attached metal lath. Please refer to the system specification and appropriate details for further information.

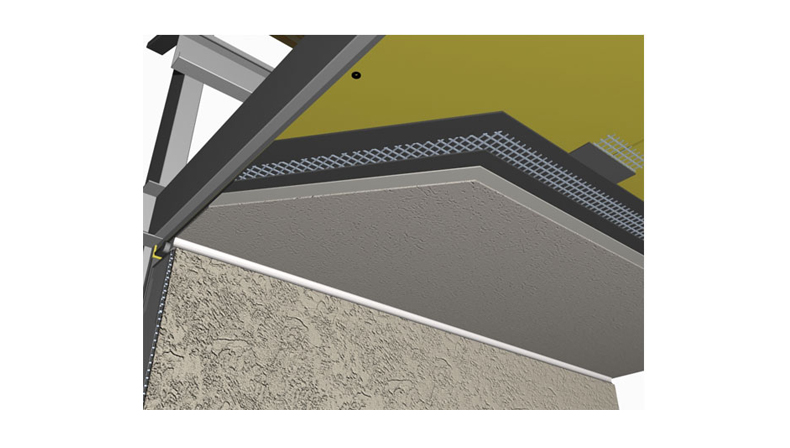

7. DEFS DIRECT APPLIED EXTERIOR FINISH SYSTEM
DEFS is intended for use on ventilated, steel frame, soffit and canopy assemblies that enclose unheated space. DEFS may be used on similar wood frame assemblies providing there is wood sheathing separating the DEFS substrate from the framing. DEFS may also be used over concrete.
